Mardi 13 février 2007

A text formatter

This Bean contains a functionality to change Font information on Form Items.
The current Font properties of the Item choosen in the ComboBox will also be reflected in the Beans.
Available Functions: Bold, Italic, Strikethrough (only on TextItems), Underline (only on TextItems), Size, Change Font.
Additional you can Save and Open the formatting of a Form & do an automatic Open of this file at Form startup.

This bean is proposed by Tom Cleymans from Belgium.

Read the article

par Oracle Forms community publié dans : Bean - general
ajouter un commentaire commentaires (0) recommander

Mercredi 7 février 2007

A VBean, FBean and PJC's dispatching event package

Purpose

Here is a package that allows the dispatching of events from Java Beans to Forms on Beans that extend VBean, beans that use the FBean package and also PJCs !
No, you are not dreaming and there is no mist on your glasses, a PJC that dispatch event to the form module !

Dispatching events

You know that a Bean that extends VButton or VTextField for example cannot use the dispatchCustomEvent() method to send message to Forms, so how could this be possible ?

Tom Cleymans from Belgium brings here the solution.

He decided to attach a class that extends VBean to each PJC, so that it can use the included dispatchCustomEvent() method to send messages to the corresponding Forms' module Bean Area.

As brilliant as simple !

Read the Tom's article then do what you are searching for years.

par Oracle Forms community publié dans : Bean - general
ajouter un commentaire commentaires (1) recommander

Mardi 30 janvier 2007

A gradient painted canevas

Purpose

Here is a Java Bean that allows to paint the current canevas with a Java gradient.
It needs the JRE 1.4 (Sun Java Plug-in)

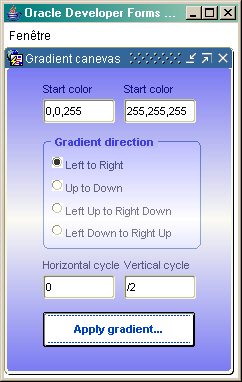

Gradient Canevas

The Java code

PaintCanevas.java

The implementation class of the Bean

oracle.forms.fd.PaintCanevas

The methods you can call

Set the gradient parameters

Set_Custom_Property( 'BL.BEAN', 1, 'SET_GRADIENT_COLORS', '255,255,0,255,0,0');

It takes two RGB colors, the starting color then the ending color.
Set the Horizontal cycle

Set_Custom_Property( 'BL.BEAN', 1, 'SET_H_CYCLE', 'cycle_info' ) ;

Set the Horizontal cycle when you want to have a repetitive gradient.

You can provide a value exprimed in pixel or a fraction

e.g.:

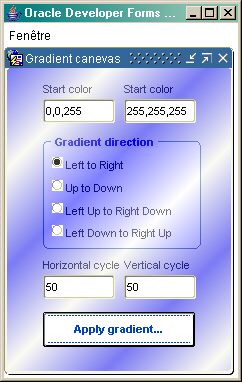

- repeat the gradient 2 times horizontally:

Set_Custom_Property( 'BL.BEAN', 1, 'SET_H_CYCLE', '/2' ) ;

- repeat the gradient each 50 horizontal and vertical pixels

Set_Custom_Property( 'BL.BEAN', 1, 'SET_H_CYCLE', '50' ) ;
Set_Custom_Property( 'BL.BEAN', 1, 'SET_V_CYCLE', '50' ) ;
Set the Vertical cycle

Set_Custom_Property( 'BL.BEAN', 1, 'SET_V_CYCLE', 'cycle_info' ) ;

See the Horizontal cycle explanation.
Set the gradient direction

Set_Custom_Property( 'BL.BEAN', 1, 'SET_GRADIENT_DIRECTION', 'direction' ) ;

Where direction can take one of the following values:

LeftToRight : Left to Right
UpToDown : Up to Down
LeftUpToRightDown : Left Up to Right Down
LeftDownToRightUp : Left Down to Right Up

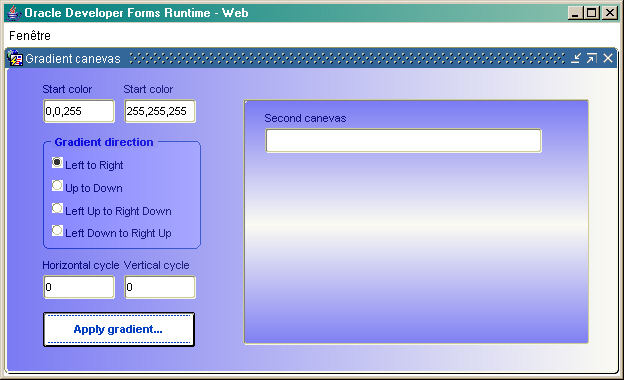

Of course, you can have one Bean per canevas, so you can have some nice mixed compositions with multiple canevases !

The sample dialog

   . Download the gradientcanevas.zip file
   . Unzip the files
   . copy the paintcanevas.jar file in the /forms/java directory
   . Edit your /forms/server/formsweb.cfg file to add the jar file
   . Open the GRADIENT_CANEVAS.fmb module (Oracle Forms 9.0.2)
   . Compile all and run the module

par Oracle Forms community publié dans : Bean - general
ajouter un commentaire commentaires (0) recommander

Vendredi 26 janvier 2007

A Swing button PJC

Purpose

Here is a Swing JButton that overloads a standard PJC's button.
It needs the JRE 1.4 (Sun Java Plug-in)

Swing button

It allows to have a standard Forms button with some nice decoration features.

You can apply a gradient color, set rounded borders, justify the label and also have a shadow behind the label.
Because it is firstly a PJC, you can set most of the common properties with the Set_Item_Property() built-in (label, position, foreground color, background color, etc...).

The gradient feature is part of the JRE 1.4 so this bean need the Sun Java plug-in to run.

The Java code

SwingButton.java CButton.java

The implementation class of the Button item

oracle.forms.fd.SwingButton

The methods you can call

Set the gradient parameter

Set_Custom_Property( 'BL.SWINGBUTTON', 1, 'SET_GRADIENT_COLOR', '255,255,0,255,0,0');

It takes two RGB colors, the starting color then the ending color.

Set the label's shadow color

Set_Custom_Property( 'BL.SWINGBUTTON', 1, 'SET_SHADOW_COLOR', 'r,g,b');

On the screenshot, you can see a white shadow behind the label.

Set the buttons's border color

Set_Custom_Property( 'BL.SWINGBUTTON', 1, 'SET_BORDER_COLOR', 'r,g,b');

Set the gradient direction

Set_Custom_Property( 'BL.SWINGBUTTON', 1, 'SET_GRADIENT_DIR', 'direction');

Where direction can take one of the following value:

1 : left to right
2 : right to left
3 : up to down (like the screen-shot)
4 : down to up

Set the text position

Set_Custom_Property( 'BL.SWINGBUTTON', 1, 'SET_TEXT_POSITION', 'left | center | right' ) ;

Set the image position

Set_Custom_Property('BL.SWINGBUTTON', 1, 'SET_IMAGE_POSITION', 'HV' );

Where H can be:
Left, Center, Right

and V can be:
Top, Middle, Bottom

LT	CT	RT
LM	CM	RM
LB	CB	RB

Set the current image name

Set_Custom_Property('BL.SWINGBUTTON', 1, 'SET_IMAGE', 'image_name[,position]');

position is facultative and by default CM (Center Middle)

image_name can be a url (http://...) a client machine file (d:/...) or a JAR file.

Set the mouse ON image (that appears when the mouse enters the button)

Set_Custom_Property('BL.SWINGBUTTON', 1, 'SET_IMAGE_ON', 'image_name' ) ;

Set the rounded setting

Set_Custom_Property( 'BL.SWINGBUTTON', 1, 'SET_ROUNDED', 'horizontal diameter,vertical diameter' ) ;

The sample dialog

   . Download the swingbutton.zip file
   . Unzip the files
   . copy the swingbutton.jar file in the /forms/java directory
   . Edit your /forms/server/formsweb.cfg file to add the jar file
   . Open the SWINGBUTTON.fmb module (Oracle Forms 9.0.2)
   . Compile all and run the module

   The swingbutton.jar file have to be signed.
   The swingbutton.jar file provided with the article is already signed.

par Oracle Forms community publié dans : PJC - Buttons
ajouter un commentaire commentaires (2) recommander

Mercredi 10 janvier 2007

A multi-record PJC

Purpose

Here is a text item's PJC that can be used in multi-records Forms tables.

Multi-record PJC textfield

It allows to have a coherent behaviour in a multi-record table for items that record number are greater than the number of records displayed.

In the standard way, you can set an Implementation Class to a PJC that extends the corresponding Forms item type (VTextField in this example), but you cannot use the Set_Custom_Property() built-in on a record number greater than the number of records displayed block's property.
For instance, it this property is set to 10 (ten records displayed by the block), the following instruction will raise an error:

Set_Custom_Property( 'BL.TEXT_ITEM', 11, 'SET_PROPERTY', '...' );

This is a problem because you cannot use a PJC on a multi-record block if the number of records fetched or created is greater than then number of records displayed.

This PJC can be used in this case because it holds a table of objects for each PJC's instance.
You can use it to give each record a special color (without having to use the Set_Item_Instance_Property() built-in with tens of visual attributes), or also have one different hint and tooltip for each record (which is not possible in standard).

How it works:

Within the PJC:

each PJC's instance (10 in this example) can handle 0 to n physical records.
You can see, on the screenshot above that the first line displays the record #9. If you scroll the block, it would display the 10th, then the 11th, and so on.
So, each PJC instance hold a table of objects. Each physical record must have a corresponding object in this table.

In this sample, each object contains the following values:

   . tooltip
   . hint
   . background color
   . foreground color
   . int value
   . float value
   . string value

Within the Forms module:

The trick is to re-draw all the displayed items (the page set) with their corresponding values.
This job is done in the When-New-Item-Instance block-level trigger:

Declare
LN$Pos pls_integer ;
LN$Max pls_integer := Get_Block_Property( :system.current_block, RECORDS_DISPLAYED) ;
LN$Top pls_integer := get_block_property( :system.current_block, TOP_RECORD) ;
Begin

---------------------------------------------------
-- Calculate the cursor position in the page set --
-- cannot be greater than the number             --
-- of records displayed                          --
---------------------------------------------------
If LN$Top > 1 Then
LN$Pos := :system.cursor_record - LN$Top + 1 ;
Else
LN$Pos := :system.cursor_record ;
End if;

--------------------------------
-- Handle the graphic aspects --
-- for the entire page set    --
--------------------------------
For i In 0 .. LN$Max-1 Loop
Set_Custom_Property('BL.TXT', i+1, 'PAINT_RECORD', to_char(LN$Top+i) );
End loop ;

End;

The Java code

     MultiTextField.java      MultiProps.java

The implementation class of the Text Item

     oracle.forms.fd.MultiTextField

The methods you can call

Add a new record object

Set_Custom_Property( 'BL.TEXTITEM', disp_rec, 'SET_NEW_REC', 'num_record' ) ;
Set the Foreground color

Set_Custom_Property( 'BL.TEXTITEM', disp_rec, 'SET_FGCOLOR', 'num_rec,r,g,b' ) ;
Set the Background color

Set_Custom_Property( 'BL.TEXTITEM', disp_rec, 'SET_BGCOLOR', 'num_rec,r,g,b' ) ;
Set the hint

Set_Custom_Property( 'BL.TEXTITEM', disp_rec, 'SET_HINT', 'num_rec,hint_text' ) ;
Set the tooltip

Set_Custom_Property( 'BL.TEXTITEM', disp_rec, 'SET_TOOLTIP', 'num_rec,tooltip_text' ) ;
Set a int value

Set_Custom_Property( 'BL.TEXTITEM', disp_rec, 'SET_INT_VALUE', 'num_rec,int_value' ) ;
Set a float value

Set_Custom_Property( 'BL.TEXTITEM', disp_rec, 'SET_FLOAT_VALUE', 'num_rec,float_value' ) ;
Set a char value

Set_Custom_Property( 'BL.TEXTITEM', disp_rec, 'SET_CHAR_VALUE', 'num_rec,char_value' ) ;
Set the curent record indice

Set_Custom_Property( 'BL.TEXTITEM', disp_rec, 'SET_INDICE', 'physical_record_number' ) ;

The methods you can get

every property set

   Varchar2 := Get_Custom_Property( 'BL.TEXTITEM', disp_rec, 'GET_HINT' ) ;
      Varchar2 := Get_Custom_Property( 'BL.TEXTITEM', disp_rec, 'GET_TOOLTIP' ) ;
   Varchar2 := Get_Custom_Property( 'BL.TEXTITEM', disp_rec, 'GET_INT_VALUE' ) ;
   Varchar2 := Get_Custom_Property( 'BL.TEXTITEM', disp_rec, 'GET_FLOAT' ) ;
   Varchar2 := Get_Custom_Property( 'BL.TEXTITEM', disp_rec, 'GET_CHAR' ) ;

The property is read for the physical record number indicated by the SET_INDICE property, so you have to set this property before.

e.g. :

-------------------------------------------------
-- Get the hint of the current physical record --
-------------------------------------------------
Set_Custom_Property('BL.TXT', LN$Pos, 'SET_INDICE', to_char(:system.cursor_record) );
Message(Get_Custom_Property('BL.TXT', LN$Pos, 'GET_HINT' ));

The sample dialog

   . Download the pjcmultirec.zip file
   . Unzip the files
   . copy the multirecord.jar file in the /forms/java directory
   . Edit your /forms/server/formsweb.cfg file to add the jar file
   . Open the PJCMULTIREC.fmb module (Oracle Forms 9.0.2)
   . Compile all and run the module

par Oracle Forms community publié dans : PJC - Text items
ajouter un commentaire commentaires (0) recommander

Mardi 9 janvier 2007

Drag 'n Drop

Purpose

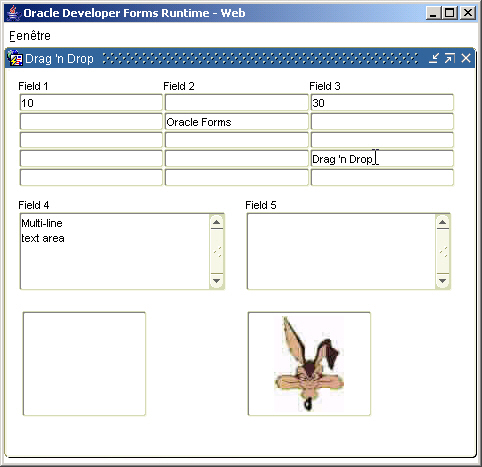

Here is a Java bean that allows to Drag 'n Drop between Forms items.

You can Drag 'n Drop between mono and multi-line text fields and between images.

Because the "real Java" Drag 'n Drop is not implemented in the Forms application, This one is "hand made".
So when you release the mouse button to drop the object, you have to move the mouse about one pixel to
really drop the object.

Press the Ctrl keybord key if you want to keep the original object (COPY).

This demo load the image from the c:/wile.jpg image file, so copy this file from the zip file to your c:/ directory.

The Java code

     DnD.java

The implementation class of the Bean Item

     oracle.forms.fd.DnD

The sample dialog

     . Download the DnD.zip file
     . Unzip the file
     . copy the DnD.jar file in the <ORACLE_HOME>/forms/java directory
     . Edit your /forms/server/formsweb.cfg file to add this jar file
     . Open the DnD.fmb module (Oracle Forms 9.0.2)
     . Compile all and run the module

par Oracle Forms community publié dans : Bean - general
ajouter un commentaire commentaires (3) recommander

Lundi 8 janvier 2007

PJC : A blinking text item

Purpose

Here is a PJC for textfields that allows to have a blinking behaviour.

Blinking textfield

This behaviour could be easily applied to other kind of items, like Command buttons for instance.

The Java code

BlinkTextField.java

The implementation class of the Text Item

oracle.forms.fd.BlinkTextField

The methods you can call

Set the blinking rate

Set_Custom_Property( 'BL.BEAN', 1, 'SETBLINKRATE', 'milliseconds' ) ;

Set the Foreground color

Set_Custom_Property( 'BL.BEAN', 1, 'SETFGCOLOR', 'r,g,b' ) ;

Set the Background color

Set_Custom_Property( 'BL.BEAN', 1, 'SETBGCOLOR', 'r,g,b' ) ;

Start blinking

Set_Custom_Property( 'BL.BEAN', 1, 'START', '' ) ;

Stop blinking

Set_Custom_Property( 'BL.BEAN', 1, 'STOP', '' ) ;

The sample dialog

   . Download the blink.zip file
   . Unzip the files
   . copy the blink.jar file in the /forms/java directory
   . Edit your /forms/server/formsweb.cfg file to add the jar file
   . Open the BLINK.fmb module (Oracle Forms 9.0.2)
   . Compile all and run the module

par Oracle Forms community publié dans : PJC - Text items
ajouter un commentaire commentaires (0) recommander

Vendredi 5 janvier 2007

A multiline package

Purpose

Here is a collection of PJCs that allow to have multiline labels and tooltips.
The tooltips can have a nice decoration like Java gradients, and be displayed anywhere on the screen.

It needs, at least, the Sun Java plugin 1.4 to run. It won't run against the JInitiator.

All the properties can be set within the Tooltip item property.
So it is convenient for modules generated by Oracle Designer for instance
(no need to use the Set_Custom_Property built-in)

The character that simulates the carriage return is the | (alt+124)
You can place it in both label and tooltip properties.

On the image above, you can see the multi-line CheckBox label.

Here are its particular properties:

   Implementation Class : oracle.forms.fd.JCheckBoxMLline
   Label : Check|box
   Tooltip : CheckBox tooltip<params>fg=255,255,255 bg=120,120,255</params>

The parameters set in the tooltip property must be entered between the <params> and </params> tags.
The properties you can set are:

   the tooltip text color : fg=r,g,b
   the tooltip background color : bg=r,g,b[,r,g,b]
   the tooltip position : pos=x,y

The Java code

     src.zip

The implementation classes of the Bean Item

   There are as many classes as Forms item types:

Forms item	Implementation Class property
Check Box item	oracle.forms.fd.JCheckBoxMLline
Combo list	oracle.forms.fd.JComboBoxMLline
T list	oracle.forms.fd.JTListMLline
Pop list	oracle.forms.fd.JPopListMLline
Radio button	oracle.forms.fd.JRadioButtonMLline
Text item	oracle.forms.fd.JTextFieldTooltip
Command button	oracle.forms.fd.JVButtonMLline

The methods you can call

Set the tooltip text color

Set_Custom_Property( 'BL.BEAN', 1, 'SET_TEXT_COLOR', 'r,g,b' ) ;

Set the backgtound tooltip color

Set_Custom_Property( 'BL.BEAN', 1, 'SET_COLORS', 'r,g,b[,r,g,b]' ) ;

If you set two colors, the tooltip background will be colorized with a gradient from the first color to the second one.
e.g. :

// set background tooltip color gradient from red to yellow
Set_Custom_Property('BL.BEAN', 1, 'SET_COLORS', '255,120,120,255,255,128' ) ;

// set background tooltip color to light blue
Set_Custom_Property('BL.BEAN', 1, 'SET_COLORS', '120,120,255' ) ;

Set the tooltip absolute position

You can enforce the tooltip to be displayed on a particular position relative to the parent window (default) or the MDI window.
The X,Y coordinates are in pixel.

Set_Custom_Property( 'BL.BEAN', 1, 'SET_POSITION', '10,250' ) ;

Set the window attachment for absolute tooltip position

Set_Custom_Property( 'BL.BEAN', 1, 'SET_ATTACH', 'MDI | anything_else' ) ;

If you decide to use the absolute tooltip positionning (SET_POSITION) you can define if the tooltip is attached to its parent window (default) or to the MDI window

The sample dialog

     . Download the multiline.zip file
   . Unzip the files
     . copy the Multiline.jar file in the <ORACLE_HOME>/forms/java directory
     . Edit your /forms/server/formsweb.cfg file to add these 2 jar files
     . Open the MULTILINE.fmb module (Oracle Forms 10.1.2)
   . Compile all and run the module

par Oracle Forms community publié dans : Bean - general
ajouter un commentaire commentaires (0) recommander

Mardi 26 décembre 2006

A Full Web Browser Java Bean

Purpose

Here is a Java bean that allows to have an enhanced Web Browser.
It is a full Web browser that can handle Javascript and display Flash animations.

The material comes from a sourceforge project:
http://sourceforge.net/project/showfiles.php?group_id=170904

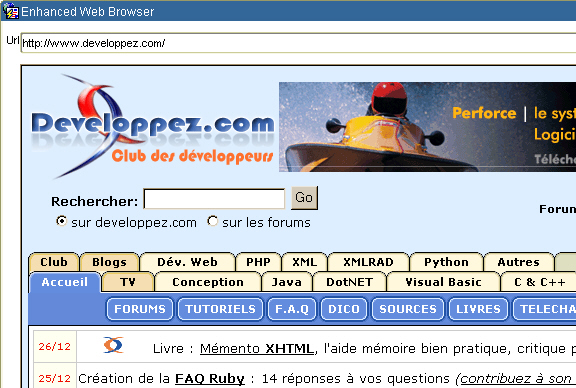

Enhanced Web Browser

It can accept both http url and local machine html file names.

The Java code

EnhancedHTMLBrowser.java

The implementation class of the Bean Item

oracle.forms.fd.EnhancedHTMLBrowser

The methods you can call

Get the Forms Window

Set_Custom_Property( 'BL.BEAN', 1, 'INFOBEAN', '' ) ;

This must be used to retrieve the Forms window that handles the webBrowser, then synchronize its position when the windows is moved. This must be the first property set (in the When-New-Form-Instance trigger).

Set the URL/File

Set_Custom_Property( 'BL.BEAN', 1, 'SET_URL', 'url | file_name' ) ;

e.g. :

Set_Custom_Property('BL.BEAN', 1, 'SET_URL', 'http://www.developpez.com/' ) ;

Set_Custom_Property('BL.BEAN', 1, 'SET_URL', 'd:/mypage.htm' ) ;

Set the border of the bean

Set_Custom_Property( 'BL.BEAN', 1, 'SET_BORDER', 'true | false' ) ;

When you want to use this bean to display a Flash image (*.swf), you would probably prefer not to have any border bounding the image.
In this case, set the border to false.

Basic navigation

Set_Custom_Property( 'BL.BEAN', 1, 'SET_NAVIGATION', 'back | forward | refresh' ) ;

The sample dialog

     . Download the eHTMLBrowser.zip file
     . Download the sourceforge project zip file
     . Unzip the files
     . copy the jdic.jar and eHTMLBrowser.jar files in the <ORACLE_HOME>/forms/java directory
     . Edit your /forms/server/formsweb.cfg file to add these 2 jar files
     . Add the 2 .dll files and IeEmbed.exe (from the javaflashbridge-v1.zip file) to your Windows/system32 directory
     . Open the EHTMLBROWSER.fmb module (Oracle Forms 9.0.2)
     . Compile all and run the module

     The .jar files must be signed
     The eHTMLBrowser.jar and jdic.jar files provided with the .zip file are already signed

par Oracle Forms community publié dans : Bean - general
ajouter un commentaire commentaires (7) recommander

Vendredi 22 décembre 2006

A Java Bean to start external programmes and get both standard and error output

Purpose

Here is a Java bean that allows to start programmes on the client machine, then capture the standard/error output.
It could be used if you don't want to install or use the Webutil library.

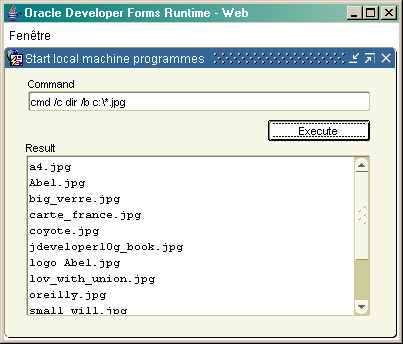

Java Host

If you target to use parameters that contain blanks, separate them by a comma.
The output lines are sent by the external programme (and received by Forms) asynchronously.

The Java code

JavaHost.java

The implementation class of the Bean Item

oracle.forms.fd.JavaHost

The methods you can call

Set the command

Set_Custom_Property( 'BL.BEAN', 1, 'SET_PROG', 'command' ) ;

e.g. :

Set_Custom_Property('BL.BEAN', 1, 'SET_PROG', 'cmd /c dir /b d:/*.jpg' ) ;

If you intend to use parameters that contains blanks, use a comma to seperate them:

Set_Custom_Property('BL.BEAN', 1, 'SET_PROG', 'cmd,/c,findstr,"width height", d:/oracle9i/forms90/server/formsweb.cfg' ) ;

The event raised by the bean

MSGSTND

This event is raised by the bean to inform Forms that a line has been sent by the external process on the standard output.

MSGERROR

This event is raised by the bean to inform Forms that a line has been sent by the external process on the error output.

Here is the code of the When-Custom-Item-Event trigger of the sample dialog:

DECLARE

    eventName varchar2(30) := :system.custom_item_event;
    eventValues ParamList;
    eventValueType number;
    LC$Msg     Varchar2(32000);
    LC$Item    varchar2(256);
    LC$Event   varchar2(256);

BEGIN

   IF (eventName='MSGSTND') THEN
      -- get the standard output --
      eventValues := get_parameter_list(:system.custom_item_event_parameters);
      get_parameter_attr(eventValues,'MSGTEXT',eventValueType, LC$Msg);
      If Length(:BL.RESULT) + Length(LC$Msg) > 32000 Then
      :BL.RESULT := '' ;
      End if ;
      :BL.RESULT := :BL.RESULT || LC$Msg || CHR(10) ;
      Synchronize;
   ELSIF (eventName='MSGERROR') THEN
      -- get the component properties --
      eventValues := get_parameter_list(:system.custom_item_event_parameters);
      get_parameter_attr(eventValues,'MSGTEXT',eventValueType, LC$Msg);
      If Length(:BL.RESULT) + Length(LC$Msg) > 32000 Then
      :BL.RESULT := '' ;
      End if ;
      :BL.RESULT := :BL.RESULT || ' *** ERROR ***' || CHR(10) || LC$Msg || CHR(10) ;
      Synchronize;
   END IF;

END;

The sample dialog

     . Download the javahost.zip file
     . Unzip the file
     . copy the javahost.jar file in the <ORACLE_HOME>/forms/java directory
     . Edit your /forms/server/formsweb.cfg file to add this jar file
     . Open the JAVA_HOST.fmb module (Oracle Forms 9.0.2)
     . Compile all and run the module

     The .jar file must be signed
     The javahost.jar file provided with the .zip file is already signed

par Oracle Forms community publié dans : Bean - general
ajouter un commentaire commentaires (0) recommander

How to's

Site navigation

Categories

Links

Recent articles

Search

A text formatter

A VBean, FBean and PJC's dispatching event package

A gradient painted canevas

A Swing button PJC

A multi-record PJC

Drag 'n Drop

PJC : A blinking text item

A multiline package

A Full Web Browser Java Bean

A Java Bean to start external programmes and get both standard and error output
