Purpose

Here is a Pluggable Java Component that allows to have non rectangular buttons.

Because it uses the Gradient features, it needs, at least the Sun java plugin 1.4
It won't run against JInitiator

You can have shapes described by polygon coordinate pairs, and also button made by a single letter, a word or even, by a complete sentence.






The Java code

     amazingbutton.java

The implementation class of the Push Button Item

     oracle.forms.fd.AmazingButton

The methods you can set

Because it is a PJC that extends VButton, you can use the standard Set_Item_Property() built-in to set the standard button's properties.

Draw a circle button - SET_CIRCLE

Set_Custom_Property( 'BL.BT', 1, 'SET_CIRCLE','');

Draw a losange button - SET_LOSANGE

Set_Custom_Property( 'BL.BT', 1, 'SET_LOSANGE','');

Draw a polygon button - SET_POLYGON

Set_Custom_Property( 'BL.BT', 1, 'SET_POLYGON','x,y[,x,y[,...]]');

e.g.
Set_Custom_Property( 'BL.BT', 1, 'SET_POLYGON','24,0,47,34,47,58,38,58,24,37,10,58,1,58,0,33,24,1');

Draw a text button - SET_TEXT

Set_Custom_Property( 'BL.BT', 1, 'SET_TEXT','text[,font_name[,font_weight[,font_size]]]');

e.g.
Set_Custom_Property( 'BL.BT', 1, 'SET_TEXT','The text,Tahoma,B,45');

Set the text shadow color - SET_SHADOW_COLOR

Set_Custom_Property( 'BL.BT', 1, 'SET_TEXT_SHADOW','rgb_color');

default color is grey (r160g160b160)

e.g.
Set_Custom_Property( 'BL.BT', 1, 'SET_TEXT_SHADOW','r129g25b222');

Set the text shadow shift - SET_SHADOW_SHIFT

Set_Custom_Property( 'BL.BT', 1, 'SET_SHADOW_SHIFT','x_shift,y_shift');

e.g.
Set_Custom_Property( 'BL.BT', 1, 'SET_TEXT_SHADOW','-5,-4');

When no given x=4 and y=3.

If you want to hide the shadow, provide 0,0

Set the text position - SET_TEXT_POSITION

Set_Custom_Property( 'BL.BT', 1, 'SET_TEXT_POSITION','left | center | right');

e.g.
Set_Custom_Property( 'BL.BT', 1, 'SET_TEXT_POSITION','left');

Set the text x,y position - SET_TEXT_AT

Set_Custom_Property( 'BL.BT', 1, 'SET_TEXT_AT','x_pos,y_pos');

e.g.
Set_Custom_Property( 'BL.BT', 1, 'SET_TEXT_AT','10,10');

Set the gradient colors - SET_GRADIENT

Set_Custom_Property( 'BL.BT', 1, 'SET_GRADIENT','rgb_color,rgb_color');

e.g.
Set_Custom_Property( 'BL.BT', 1, 'SET_GRADIENT','r230g154b117,r230g78b0');

Set the border color - SET_BORDER_COLOR

Set_Custom_Property( 'BL.BT', 1, 'SET_BORDER_COLOR','rgb_color');

e.g.
Set_Custom_Property( 'BL.BT', 1, 'SET_BORDER_COLOR','r225g50b30');

Set the rotation angle - SET_ROTATION

Set_Custom_Property( 'BL.BT', 1, 'SET_ROTATION','angle');

e.g.
Set_Custom_Property( 'BL.BT', 1, 'SET_ROTATION','90');

Scale the shape to fit the button's size - SCALE

Set_Custom_Property( 'BL.BT', 1, 'SCALE','true | false');

If not used, the shape is scaled by default.

e.g.
-- don't scale the shape --
Set_Custom_Property( 'BL.BT', 1, 'SCALE','false');

Draw the button's bounding box - DRAW_BORDER

Set_Custom_Property( 'BL.BT', 1, 'DRAW_BORDER','true | false');

e.g.
Set_Custom_Property( 'BL.BT', 1, 'DRAW_BORDER','true');

Draw all buttons' bounding boxes - DRAW_BORDER_ALL

Set_Custom_Property( 'BL.BT', 1, 'DRAW_BORDER_ALL','true | false');

e.g.
Set_Custom_Property( 'BL.BT', 1, 'DRAW_BORDER_ALL','true');

Draw the shape's bounding box - DRAW_CLIP_BORDER

Set_Custom_Property( 'BL.BT', 1, 'DRAW_CLIP_BORDER','true | false');

e.g.
Set_Custom_Property( 'BL.BT', 1, 'DRAW_CLIP_BORDER','true');

Draw all shapes' bounding boxes - DRAW_CLIP_BORDER_ALL

Set_Custom_Property( 'BL.BT', 1, 'DRAW_CLIP_BORDER_ALL','true | false');

e.g.
Set_Custom_Property( 'BL.BT', 1, 'DRAW_CLIP_BORDER_ALL','true');

Set a bevel background - SET_RELIEF

Set_Custom_Property( 'BL.BT', 1, 'SET_RELIEF','true | false');

e.g.
Set_Custom_Property( 'BL.BT', 1, 'SET_RELIEF','true');

Set a bevel background on every button - SET_RELIEF_ALL

Set_Custom_Property( 'BL.BT', 1, 'SET_RELIEF_ALL','true | false');

e.g.
Set_Custom_Property( 'BL.BT', 1, 'SET_RELIEF_ALL','true');

Set the Text button shadow thickness - SET_TEXT_THICKNESS

Set_Custom_Property( 'BL.BT', 1, 'SET_TEXT_THICKNESS','horizontal_thickness,vertical_thickness');

e.g.
Set_Custom_Property( 'BL.BT', 1, 'SET_TEXT_THICKNESS','6,6');

The sample dialog


     . Download the amazingbutton.zip file
     . Unzip the file
     . copy the amazingbutton.jar file in the <ORACLE_HOME>/forms/java directory
     . Edit your /forms/server/formsweb.cfg file to add the amazingbutton.jar .
     . Open the amazingbutton.fmb module (Oracle Forms 9.0.2)
     . Compile all and run the module

Purpose

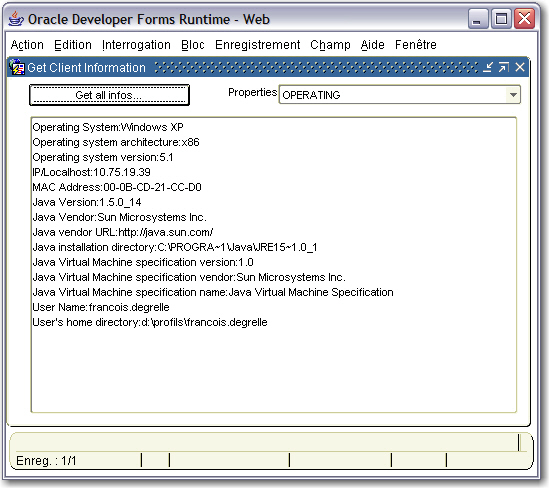

Here is a Java Bean that allows to get some client machine information.






The Java code

     ClientInfos.java



The implementation class of the Bean Item

     oracle.forms.fd.ClientInfos

The methods you can get



Get all client information

Get_Custom_Property('BLOCK.ITEM',1,'GET_CLIENT_INFOS');

e.g.:
-- get all information --
:BL.INFOS := Get_Custom_Property('BL.BEAN', 1, 'GET_CLIENT_INFOS' ) ;

Get a particular client information

Get_Custom_Property('BLOCK.ITEM',1,'property');

where property could be one of the following:

OPERATING : Operating System
ARCHITECTURE : architecture
OSVERSION : OS version
IP : IP address
MAC : MAC address
JAVAVERSION : Java version
JAVAVENDOR : Java vendor
JAVAVENDORURL : Java vendor URL
JAVAHOME : Java vendor home page
JAVAVMSPECIFICATIONVERSION : Virtual machine version
JAVAVMSPECIFICATIONVENDOR : Virtual machine vendor
JAVAVMSPECIFICATIONNAME : Virtual machine name
USERNAME : user name
USERHOME : user home

e.g.:
-- get MAC address --
:BL.INFOS := Get_Custom_Property('BL.BEAN', 1, 'MAC' ) ;

Purpose

Here is a Java bean that allows to choose a date from a Java swing calendar.

The Java calendar itself is from Kai Toedter - Released under GNU Lesser General Public License - www.toedter.com

It needs the Sun Java plugin to run (won't run with JInitiator).

(the JInitiator 1.3.28 compatible version is downlodable at the end of the article)




Just double-click a day in the calendar to send an event to Forms with the date parameters.



The Java code

     JCalendar.java



The implementation class of the Bean Item

     oracle.forms.fd.JCalendar


The properties you can set


Set some properties

Set_Custom_Property('BL.BEAN', 1, 'SET_PROPERTY', 'property_name,property_value');

property_name can be one of the following:

• title : set the frame title
• background : set the background color
• foreground : set the foreground color
• decorationforeground : set the decoration foreground color (Sun plugin only)
• sundayforeground : set the sunday foreground color (Sun plugin only)
• weekdayforeground : set the week day foreground color (Sun plugin only)
• date : set the starting date (year,month,day) (Sun plugin only)
• locale : set a new Locale
• plasticLAF : set the PlasticLAF Look & Feel
• log : set the trace to the Java console (true | false)



colors are sent with the following format : rXgXbX where x must be between 0 and 255

e.g. :
Set_Custom_Property('BL.BEAN',1, 'SET_PROPERTY','plasticLAF,true');
Set_Custom_Property('BL.BEAN',1, 'SET_PROPERTY','log,true');
Set_Custom_Property('BL.BEAN',1, 'SET_PROPERTY','title,Choose...');
Set_Custom_Property('BL.BEAN',1, 'SET_PROPERTY','locale,US');
Set_Custom_Property('BL.BEAN',1, 'SET_PROPERTY','foreground,r128g50b50');
Set_Custom_Property('BL.BEAN',1, 'SET_PROPERTY','date,2007,12,25');

Show the calendar

Set_Custom_Property('BL.BEAN', 1, 'SHOW_CALENDAR', '[x_position,y_position]');

If x_position and y_position are given, the calendar will be shown at this position (top-left corner).

e.g:
-- show calendar --
Set_Custom_Property('BL.BEAN',1, 'SHOW_CALENDAR','');

-- show calendar at position 50,50 --
Set_Custom_Property('BL.BEAN',1, 'SHOW_CALENDAR','50,50');

The event received from the Bean

CALENDAR_EVENT

this event tells Forms that a date has been chosen in the calendar.
You can get it in a WHEN-CUSTOM-ITEM-EVENT event:

DECLARE

    eventName varchar2(30) := :system.custom_item_event;
    eventValues ParamList;
    eventValueType number;
    LC$Date   varchar2(256); -- complete date
    LC$Day    varchar2(256); -- day number (1-31)
    LC$Month  varchar2(256); -- month number (1-12)
    LC$Year   varchar2(256); -- year number

BEGIN

   IF (eventName='CALENDAR_EVENT') THEN
      eventValues := get_parameter_list(:system.custom_item_event_parameters);
      get_parameter_attr(eventValues,'CALENDAR_EVENT_DATE',eventValueType, LC$Date);
      get_parameter_attr(eventValues,'CALENDAR_EVENT_DAY',eventValueType, LC$Day);
      get_parameter_attr(eventValues,'CALENDAR_EVENT_MONTH',eventValueType, LC$Month);
      get_parameter_attr(eventValues,'CALENDAR_EVENT_YEAR',eventValueType, LC$Year);
      Clear_Message;
      Message('Selected date:'|| LC$Date || '(' || LC$Day||'/'||LC$Month||'/'||LC$Year || ')');
      Synchronize ;
   END IF;

END;


The sample dialog

     . Download the JCalendar.zip file
     . Unzip the file
     . copy the FJCalendar.jar, jcalendar-1.3.2.jar and looks-2.0.1.jar files in the <ORACLE_HOME>/forms/java directory
     . Edit your /forms/server/formsweb.cfg file to add these 3 JAR files
     . Open the JCALENDAR.fmb module (Oracle Forms 9.0.2)
     . Compile all and run the module

     the FJCalendar.jar file must be signed.
     the jar file provided in this article is already signed.

Jinitiator 1.3.28 compatible version

     . Download the JCalendarJinit.zip file
     . Unzip the file
     . copy the JCalendarJinit.jar and jcalendar.jar files in the <ORACLE_HOME>/forms/java directory
     . Edit your /forms/server/formsweb.cfg file to add these 2 JAR files
     . The Implementation Class property must be : oracle.forms.fd.JCalendarJinit
